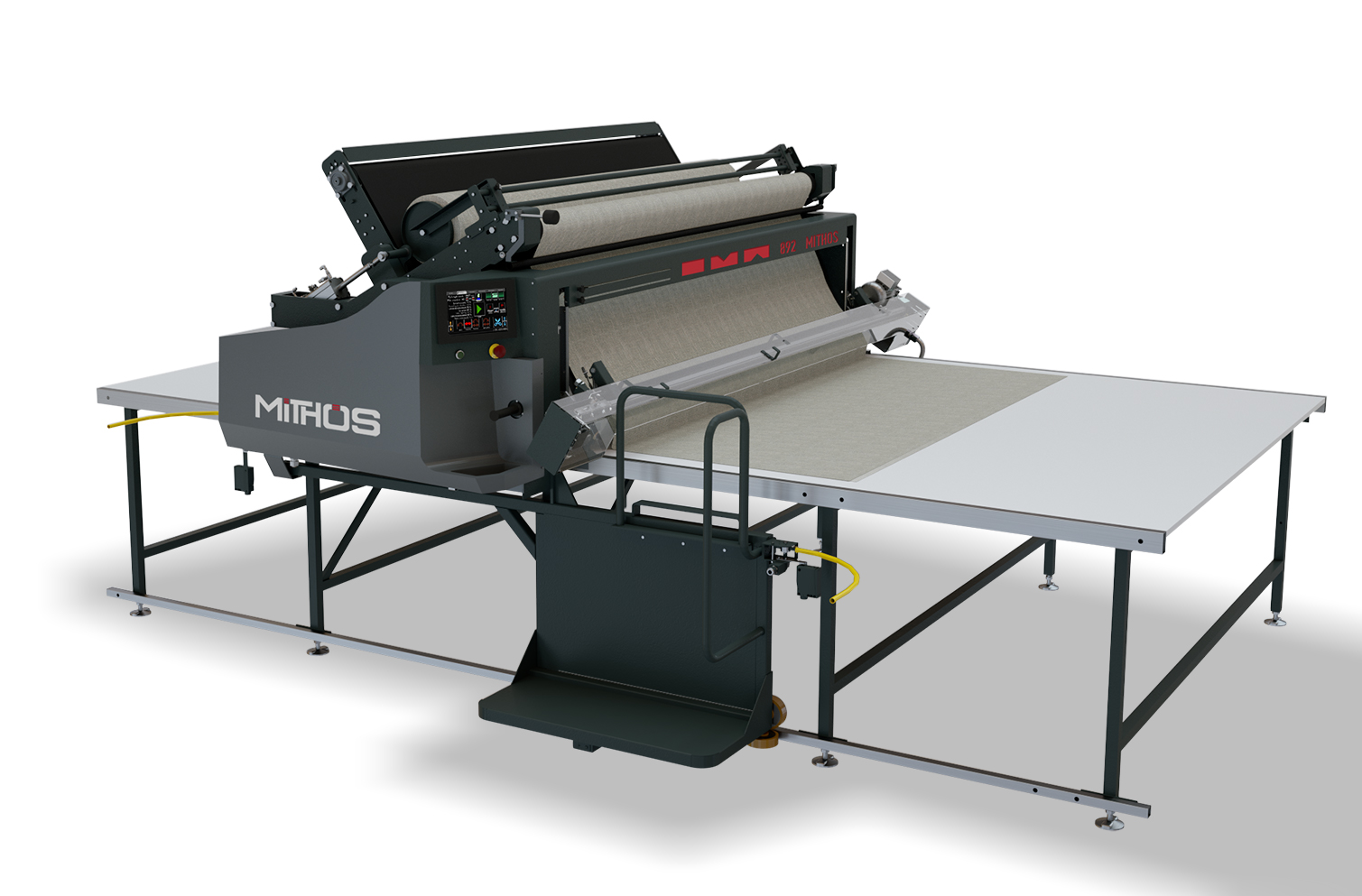

IMA 892 MITHOS is a FULLY DIGITAL SPREADER 4 x 4
Full use of Mitsubishi technology.
The communication between PLC and brushless motors, through the use of the latest generation servo drives, guarantees maximum precision.
lay thickness up
spreading speed up
capacity up
roll diameter up
available fabric width
progressive adjustable dancer-bar
installed power
1. Machine information, commands and diagnostic totally controlled in digital, in real time
2. Fabric feeding and tension free system are also electronically controlled in real time by DIGITAL SIGNAL which grants:
• high precision of machine positioning,
• perfect edges alignment, Achievable using an high pulses encoder that allows the machine to work in mm instead of cm., with big saving of fabric and time
3. Possibility to set, store and load in real time unlimited spreading profiles in according to the kind of fabric
4. Low consumption thanks to eco-power technology (Mitsubishi inverter of latest generation) and low running costs
5. High speed of data transfer
6. Possibility of remote connection when connected to internet
7. Possibility to interface the machine with company managements systems
8. Easy remote support service by IMA team.
1. Movement by means of an electric axis controlled by high efficiency brushless motors
2. 4 driven wheels by syncronous belt
3. Interactive touch-screen with flexible performances to control spreading functions
4. Possibility to display and update fabric usage 5. Automatic braking system
6. Be-directional cutting device with adjustable speed and accelerations and programmable lifting
7. Lowered fixed cradle turret for easy loading and unloading of the cloth roll, consisting of a double full width PVC belt.
8. Rear belt moved by air pistons
9. Management of flat spreading
• Capacity: 130 kg
• Spreading speed: up to 100 M/min
• Lay thickness: 22 cm
• Available fabric width: H 160-180-200-220 – on request 240
• Roll diameter: 40 cm
• Voltage: 400-220 3F+N – 50 HZ
Different specifications might be available on request
